Project Overview
Located in Yuyao City, Zhejiang Province, this project serves an automotive interior components manufacturer. It involves designing a turnkey intelligent warehouse system tailored to the client's operational processes and production requirements. The aim is to enhance storage management efficiency through optimized layout while effectively reducing production costs.
Highlights Showcase
-
Vertical Storage Capacity: 1,260 pallet positions; 2,280 material trolley positions.
-
Storage Method: Beam racking with high-bay storage.
-
Inbound/Outbound Operations: Aisle-type stacker cranes for goods handling.
Solutions
Addressing the challenges of low warehouse space utilization and insufficient automation, CNANC Intelligent designed a stacker crane high-bay automated storage system. Integrated with WMS (Warehouse Management System) and WCS (Warehouse Control System) for unified coordination, it enables efficient storage and transfer of multi-attribute materials, boosting storage/retrieval efficiency by 50%.

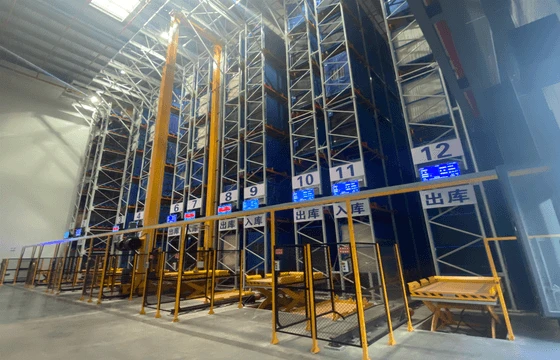

The automated storage system measures approximately 90.5m (length) × 27.5m (width) × 17.3m (height), divided into two storage zones based on carrier type. The pallet storage zone comprises 1,260 storage locations, while the material trolley storage zone contains 2,280 locations. Both zones utilize six straight-track single-reach stacker cranes.Software integration utilizes CNANC Intelligent's proprietary WMS warehouse management system and WCS warehouse control system for unified coordination. Materials undergo automated handling operations between conveyor lines and the automated storage system, significantly enhancing storage density and inbound/outbound efficiency.
The automated storage system measures approximately 90.5m (length) × 27.5m (width) × 17.3m (height), divided into two storage zones based on carrier type. The pallet storage zone comprises 1,260 storage locations, while the material trolley storage zone contains 2,280 locations. Both zones utilize six straight-track single-reach stacker cranes.Software integration utilizes CNANC Intelligent's proprietary WMS warehouse management system and WCS warehouse control system for unified coordination. Materials undergo automated handling operations between conveyor lines and the automated storage system, significantly enhancing storage density and inbound/outbound efficiency.
