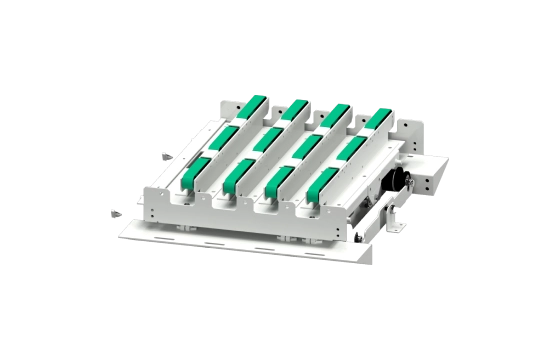

Jacking Transfer Machine (Roller/Chain Type)
The machine is used to move the goods vertically and horizontally between different conveyor lines by means of the lifting mechanism. It is characterized by simple operation, accurate positioning, stable operation and strong carrying capacity. It is widely used in all kinds of occasions where the pallet goods need to be moved quickly and accurately, and it can significantly improve the efficiency of logistics operation and the utilization of space.
Key Parameters
Name | Drum-type | Chain |
Length/Width | Customize on demand | Customize on demand |
Lift Stroke (mm) | 70 | 70 |
Cycle Time (s) | ＜3 | ＜3 |
Maximum Load （kg） | 3500 | 3500 |
Maximum Transport Speed (m/min) | 20 | 20 |
Control Method | Manual and online automatic control mode | Manual and online automatic control mode |
